    J40 Ratchet Types Cable Cutter for for Armored cable and Copper and Aluminum Cable 300mm2

    Ask Lasest Price
    Brand Name : SHENHONG
    Model Number : J40
    Certification : ISO
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 1000pcs per month
    Delivery Time : 7 days after payment
    • Product Details
    • Company Profile

    J40 Ratchet Types Cable Cutter for for Armored cable and Copper and Aluminum Cable 300mm2

    J40 Ratchet Types Cable Cutter for for Armored cable and Copper and Aluminum Cable 300mm2

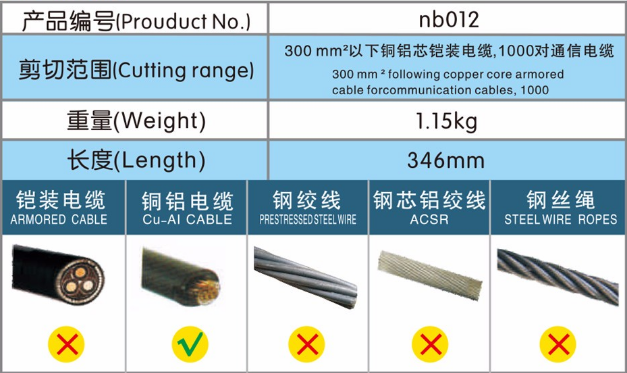

    BRIEF INTRODUCTION

    1. Cutting range: for armored cable and copper and aluminum cable, φ30mm(300mm²)

    2. Not for cutting stressed steel wire and steel wire knives can be sharpened or replaced.


    Feature:

    1. Cutting cu/al armored cable below diameter 300mm2

    2. Blades can be resharpened or exchanged.

    3. Ratchet structure saves labor

    4. 30% labor save cause of handles special design

    5. Packed with carrying bag.

    6. Size: 346x123x38 mm

    7. Weight: 1.15kg


    Different Types of Cable Cutter

    1J13Cutting RangeACSR≤720mm2,Prestressed steel wire≤150mm2
    Weight1.95kg
    2J30Cutting RangeACSR≤630mm2,Prestressed steel wire≤100mm2
    Weight3.6kg
    3J25Cutting RangeACSR≤800mm2,Prestressed steel wire≤150mm2
    Weight3.45kg
    4J50Cutting RangeACSR≤1440mm2
    Weight3.2kg
    5J14Cutting Rangesteel wire rope≤20mm
    Weight2kg
    6J25ACutting Rangesteel wire rope≤30mm
    Weight3.55kg
    7J33Cutting Rangesteel wire rope≤33mm
    Weight5.15kg
    8J40ACutting RangeCopper&Aluminum Cable ≤300mm2
    Weight1kg
    9J40BCutting RangeCopper&Aluminum Cable ≤240mm2
    Weight0.65kg
    10J40CCutting Range

    For Big blade,Copper&Aluminum Cable ≤300mm2;

    For small blade,steel cable

    Weight1.1kg
    11J40DCutting RangeCopper&Aluminum Cable ≤300mm2
    Weight1.05kg
    12J40Cutting Range

    Copper&Aluminum Cable ≤300mm2;

    1000 pairs coommunication cable

    Weight1.15kg
    13J52Cutting RangeCopper&Aluminum armoured cable≤500mm2
    Weight3.1kg
    14J75Cutting Range

    Copper&Aluminum armoured cable≤3×120mm2;

    Copper&Aluminum armoured cable≤75mm;

    3600 pairs coommunication cable

    Weight3.6kg
    15J95Cutting Range

    Copper&Aluminum armoured cable≤3×185mm2;

    Copper&Aluminum armoured cable≤95mm

    Weight5kg
    16J100Cutting Range

    Copper&Aluminum armoured cable≤3×300mm2;

    Copper&Aluminum armoured cable≤100mm

    Weight6.6kg
    17J130Cutting RangeCopper&Aluminum armoured cable≤130mm
    Weight8.3kg
    18J160Cutting RangeCopper&Aluminum armoured cable≤160mm
    Weight11.1kg
