Four Bundled Conductors Stringing Rope Drive Pulley Side Sheave Aluminum Lined With Neoprene​

Data Sheet

Item No.	Model	ACSR Size Range (mm²)	Working Load (KN)	Weight (kg)	Material of Sheave
10103	SHW508	300-400	60	93	Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene
10106	SHWLN508	300-400	60	79
10123	SHW660	400-500	60	150
10126	SHWLN660	400-500	60	120
10108	SHWQN508	300-400	60	70	Nylon, optional can be lined with neoprene
10128	SHWQN660	400-500	60	110
10133	SHWQN750	500-600	80	128
10143	SHWQN822	600-700	120	156
10153	SHSQN916	700-800	150	192
10167	SHWQN1040	800-900	180	320

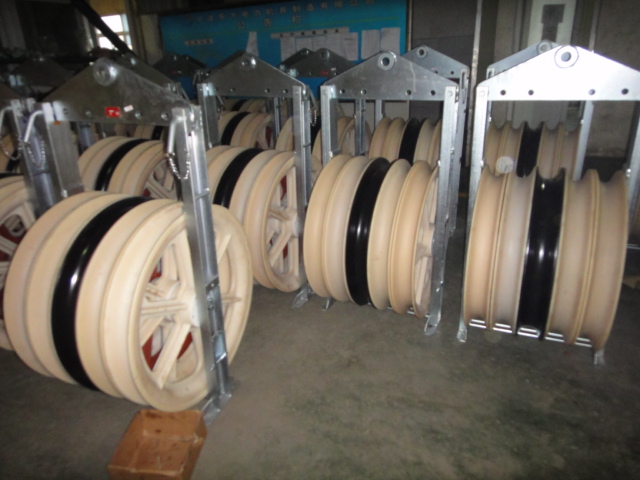

Application: It is suitable to string FOUR or FIVE stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The big size 508mm, 660mm aluminum alloy sheave can be lined with neoprene. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.

The central sheave is specially strengthened for passage of pilot wire rope.

Please Note:

1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter of sheave X width of sheave (mm).

2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.

Shipment

1. The blocks will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.

Package

1. The blocks will be loaded in container.

2. It also can be packed in plywood case or steel frame case.

Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.
