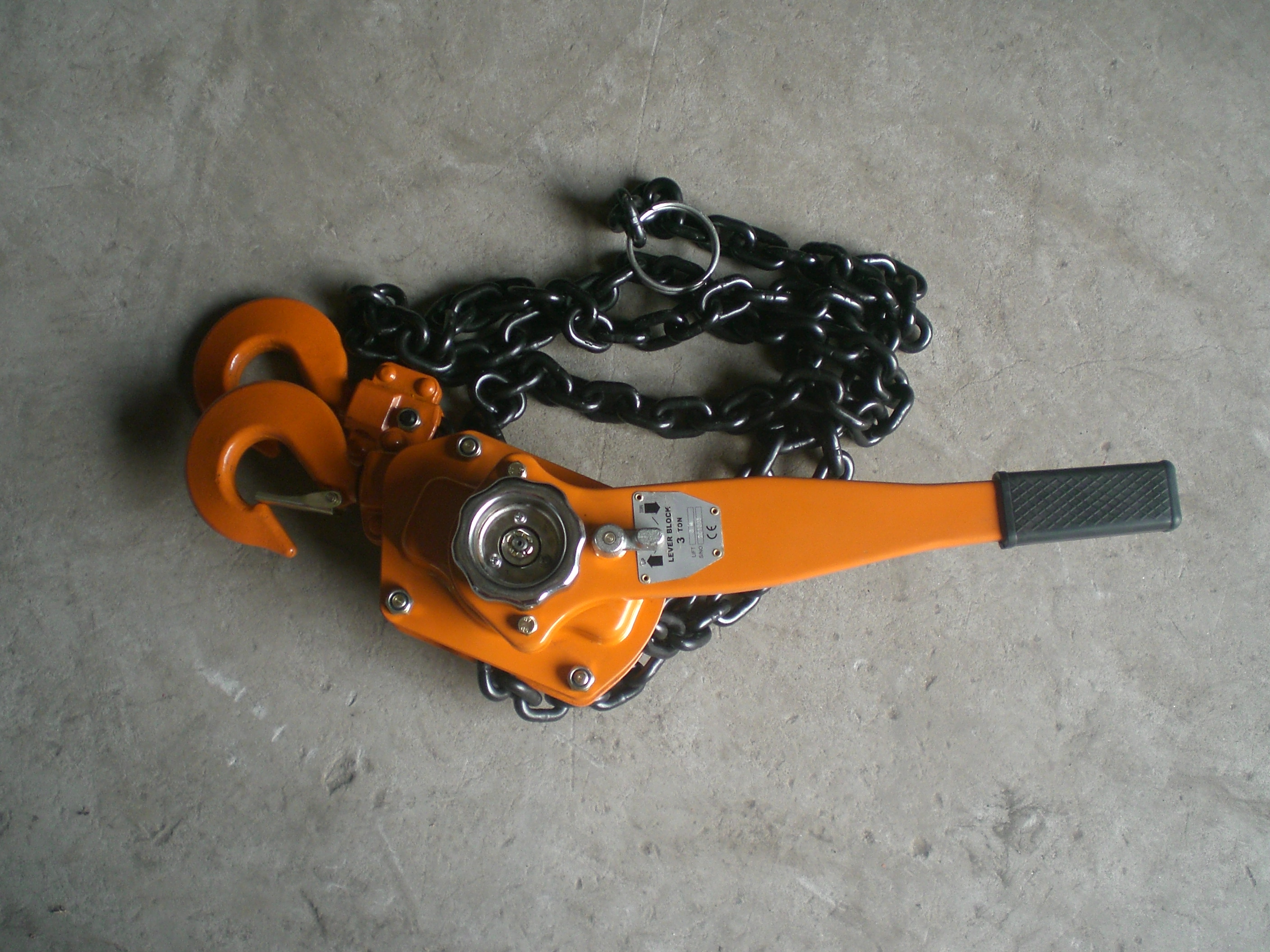

Vital Lever Chain Block 2 Ton Manual Lever Pulley Hoist Block
Introduction
1. Chain guides provide smooth chain operation
2. Roller bearing supported load sheaves for avoiding abrasion
3. Chain are made of special alloy steel that is exclusively
4. Drop forged kooks to ensure superior quallity and safety
The lever hoist static test is 4 times of capacity,and running test
is 1.5 times of capacit one by one
Lever hoist is a kind of portable and versatile hand-operated
loading and pulling appliance , which is capable of being applied
in electricity,mines ,ship buildings, construction sites,
transports,postage and telecommunication for installing
equipment,lifting goods,pulling mechanical parts,bulk strapping and
fastening,tightening fitting of wires ,assembling and welding etc,
It has exceptional asvantages particularly for pulling in every
limited narrow places, in the upper air high above the ground and
at any angles.
Application
Chain Block Pulley is for the lifting of objects and mechanical
traction, tightening steel wire, aluminum wire .
Features
It is widely used in shipbuilding, electric power, transportation,
construction, mining, telecommunications and other sectors of the
equipment installation, lifting, pulling. Hand hoist is safe,
reliable, durable, good performance, easy to repair, small volume,
light weight, convenient to carry, not much manual force and high
efficiency, the perfect structure and beautiful appearance. Hand
chain hoist and hoist are called manual hoist. It is used to lift
weights by human, and it must not be extended operating handle.In
the operating process, the rest handle should be free follow-up but
not be blocked. Please select appropriate ton hoist according to
the load.
Used to tighten the wire, lifting equipment and it is suitable for
high altitude operation.
Brake device adopts double pawl, so it is durable, safe and
reliable.
The handle design of bi-directional ratchet, the handle can be
reciprocating operation during up and down.
Design of brake and clutch device, when there’s no load, the position will be in the middle.
Can be hand chain and it can improve the work efficiency.
Data Sheet
| Model | VA0.25 | VA0.5 | VA0.75 | VA1 | VA1.5 | VA2 | VA3 | VA6 |
| Capacity t | 0.25 | 0.5 | 0.75 | 1 | 1.5 | 2 | 3 | 6 |
| Standard Lift m | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Running test load t | 0.375 | 0.75 | 1.13 | 1.5 | 2.25 | 3 | 4.5 | 9 |
| Min distance between hooks | | | 325 | 335 | 380 | 380 | 480 | 620 |
| Effort required to lift max load N | | | 140 | 140 | 220 | 220 | 320 | 3404 |
| Diameter of load chain mm | 4 | 5 | 6 | 6 | 8 | 8 | 10 | 10 |
| Net weight kg | | | 7 | 7.5 | 11 | 12 | 21 | 31 |
| Extra weight per meter of extra lift cm | | | 0.92 | 0.92 | 1.6 | 1.6 | 2.4 | 4.8 |
