12 Ton Force Overhead Line Construction Tools YQK-120 Hydraulic Cable Lug Crimping Tool Up to 120mm2

Ask Lasest Price
Brand Name :	SHENHONG
Model Number :	YQK-120
Certification :	ISO
Price :	negotiation
Payment Terms :	L/C, T/T
Supply Ability :	1000pcs per month
Delivery Time :	7days after payment

Add to Cart

Product Details
Company Profile

12 Ton Force Overhead Line Construction Tools YQK-120 Hydraulic Cable Lug Crimping Tool Up to 120mm2

12 Ton Force Overhead Line Construction Tools YQK-120 Hydraulic Cable Lug Crimping Tool Up to 120mm2

General Introduction:

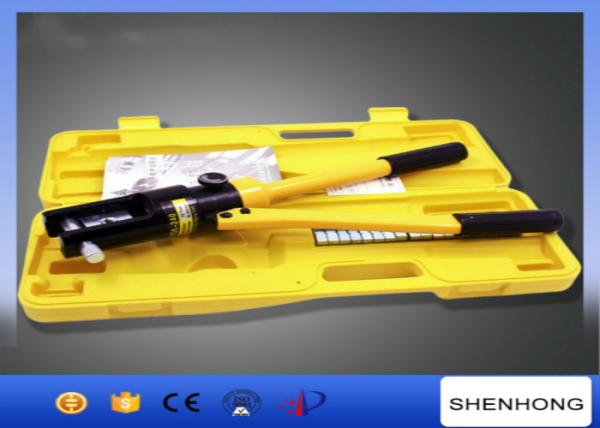

YQK-120 hydraulic crimping tools is a hand-operated self-contained tool. Designed to crimp cable connectors (lugs, splices etc.) onto cables, can be used for cable connection job in electric construction and transmission project. With 8 sets crimping dies, YQK-120 cimping capacity is 10-120mm2.

APPLICATION

Hydraulic crimping tool is a professional tool for crimping copper and aluminium lugs with different types, a wide range of crimping dies from 4mm2 to 100mm2 to suit for different size demand. The main crimping shape is hexagonal, special shape design is provided.

Feature:

Hydraulic cable plier is a processional tool for crimping copper and aluminum lugs with different types, a wide range of crimping dies from 4 mm2 to 120 mm2 to suit for different size demand. The main crimping shape is hexagonal, special shape design is provided by special making.

1. Hand-operated self-contained: no external hydraulic pump is required

2. 8 sets standard crimping dies: for precise crimping

3. Single speed unit

4. Safety value

5. 180 degree rotatable design: for easy operation in narrow place

6. Plastic case package: for easy carrying and well tool protection

SPECIFICATIONS

Crimping Range	10-120mm²
Crimping Force	12T
Crimping Type	Hexagon
Stroke	14mm
Length	425mm
Weight	4.00kg
Package	Plastic case
Criming Dies	10,16,25,35,50,70,95,120mm2

YQK Series hydraulic crimping tool

Item NO.	Crimping range	Max pressure	Max travel	Mould	Crimping type
YQK-70	4-70 mm2	6T	12mm	4, 6, 8, 10, 16, 25, 35, 50, 70 mm2	Besiege pressure
YQK-120	10-120 mm2	8T	10mm	10. 16, 25, 35, 50, 70, 95, 120 mm2	Besiege pressure
YQK-120C	10-120 mm2	8T	14mm	10. 16, 25, 35, 50, 70, 95, 120 mm2	Besiege pressure
YQK-240	16-240 mm2	10T	18mm	16, 25, 35, 50, 70, 95, 120, 150, 185, 240 mm2	Besiege pressure
YQK-300	16-300 mm2	10T	18mm	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm2	Besiege pressure
YQK-400C	16-400 mm2	12T	22mm	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 mm2	Besiege pressure

Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.

Our Services

1. On behalf of the consumer installation, commissioning products;

2. According to consumer requirements, technical guidance on the use of other aspects;

3. To ensure the supply of maintenance spare parts;

4. Responsible for the maintenance services, and provide regular maintenance, periodic maintenance;

5. To provide consumers with regular telephone interviews;

6. The handling of consumer complaints letters and visits and telephone advice, answer consumer advice.
