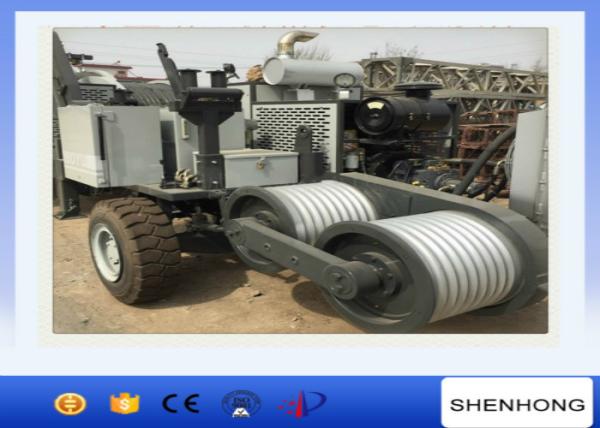

Single Conductor Power Line Stringing Equipment Puller Tensioner 35
KV
35KV Transmission Line Stringing Equipment is used for stringing
single conductor on 33KV Overhead Transmission Line. The 3 ton
hydraulic puller with 3 ton hydraulic tensioner can be also used
for OPGW stringing. We could provide whole set of equipment and
tools for 33KV transmission line stringing, such as puller,
tensioner, stringing blocks, anti twisting braided steel wire rope,
come along clamps, socket grips, swivel jonts, fixed joints,
compressors etc.
1. SA-YQ30 Hydraulic Puller
| Item No. | 07001 |
| Model | SA-YQ30 |
| Stringing capacity | 1 PILOT WIRE ROPE |
| Max. Pulling Force (KN) | 30 |
| Continuous Max. Pulling Force (KN) | 25 |
| Speed at Max. continuous pull: | 2.5km/h |
| Max. Pulling Speed (m/min) | 5km/h |
| Root Diameter of Bull wheel (mm) | Φ300 |
| Number of grooves | 7 |
| Max. Steel rope Diameter (mm) | Φ13 |
| Model of Diesel Engine | Water cooled diesel engine |
| Power of Diesel Engine | 31 KW |
| Rotate Speed of Engine (rpm) | 2200 |
| Electrical System | DC24V |
| Weight (kg) | 1500 |
| Dimension (m) | 3.2 x 1.6 x 2.0 |
Application:
The hydraulic puller is used to pull pilot wire rope for overhead
transmission line. It is equipped with hydraulic system, and can be
easily used and maintained
Features:
-With closed hydraulic circuit and variable displacement plunger
pump, the pulling force could be step less controlled.
-The max pulling force for stringing operation can be preset.
-Automatic over pulling protection system
-With the radiator imported from Germany, the machine has good heat
dissipate performance.
-With a negative spring applied hydraulic released brake, and
automatic overload protection.
-With hydraulic oil cooling system.
-Heat treated wear-proof bullwheels
-With rigid axle for towing at high speed, the machine looks
beautiful.
-Integral self-loading reel winder with automatic level wind.
-Heavy duty R-tires with excellent shock-absorbing performance.
Main Components:
-Engine: Cummins water-cooled diesel engine (China)
-Main variable displacement hydraulic pump and main motor: Rexroth
(Germany)
-Reducer: R.R. (Italian)
-Hydraulic instruments: (German)
-Radiator: AKG (German)
2. SA-YQ40 Hydraulic Puller
| Item No. | 07011 |
| Model | SA-YQ40 |
| Stringing capacity | 1 PILOT WIRE ROPE |
| Max. Pulling Force (KN) | 40 |
| Continuous Max. Pulling Force (KN) | 35 |
| Speed at Max. continuous pull: | 2.5km/h |
| Max. Pulling Speed (m/min) | 5km/h |
| Root Diameter of Bull wheel (mm) | Φ400 |
| Number of grooves | 7 |
| Max. Steel rope Diameter (mm) | Φ16 |
| Model of Diesel Engine | Water cooled diesel engine |
| Power of Diesel Engine | 60 KW |
| Rotate Speed of Engine (rpm) | 2000 |
| Electrical System | DC24V |
| Weight (kg) | 2500 |
| Dimension (m) | 3.5 x 2.0 x 2.3 |
Application:
The hydraulic puller is used to pull pilot wire rope for overhead
transmission line. It is equipped with hydraulic system, and can be
easily used and maintained
Features:
-With closed hydraulic circuit and variable displacement plunger
pump, the pulling force could be step less controlled.
-The max pulling force for stringing operation can be preset.
-Automatic over pulling protection system
-With the radiator imported from Germany, the machine has good heat
dissipate performance.
-With a negative spring applied hydraulic released brake, and
automatic overload protection.
-With hydraulic oil cooling system.
-Heat treated wear-proof bullwheels
-With rigid axle for towing at high speed, the machine looks
beautiful.
-Integral self-loading reel winder with automatic level wind.
-Heavy duty R-tires with excellent shock-absorbing performance.
Main Components:
-Engine: Cummins water-cooled diesel engine (China)
-Main variable displacement hydraulic pump and main motor: Rexroth
(Germany)
-Reducer: R.R. (Italian)
-Hydraulic instruments: (German)
-Radiator: AKG (German)
2. Hydraulic Tensioners 3 Ton SA-YZ30A (Suitable for both conductor
and OPGW, ADSS optic fiber cable)
| Item No. | 07155 |
| Model | SA-YZ30A |
| Max. Tension Force (KN) | 30 |
| Continuous Tension Force (KN) | 25 |
| Max. Stringing Speed(km/h) | 5 |
| Max. Pullback force (KN) | 20 |
| Max. Pullback speed (km/h) | 0.9 |
| Diameter of wheel (mm) | Φ1200 |
| Number of grooves | 5 |
| Max. Conductor Diameter (mm) | Φ32 |
| Model of Engine | S195GM |
| Power of Engine | 11KW |
| Rotate Speed of Engine (rpm) | 2200 |
| Electrical system: | DC12V |
| Weight (kg) | 1700 |
| Dimension (m) | 3.56 x 1.60 x 2.22 |
Application:
It is suitable for single conductor, earth wire,OPGW and ADSS optic
fiber cable stringing in line stringing operation.
Features:
-Closed hydraulic circuit, infinitely variable tension force
contril
-The max. tension/pull back force can be preset, the tension force
can be read from tension gauge
-Spring applied hydraulic released brake acts automatically in case
of hydraulic failure to ensure line safety
-Hydraulic oil cooling system
-Bull wheels lined with wear proof MC nylon lining segments
-With rigid axle for towing at max. speed of 15 km/h
Main components:
-Engine: Chinese famous branded water-cooled diesel engine
-Main pump: Sauer (USA)
-Reducer: Dinamic Oil (Italian)
-Hydraulic Instrument: (German)
-Radiator: AKG (German)
